PRODUCT NAME – Toyota Aw11 Dogbox kit
Short Description
High-performance dogbox type gearbox designed for all motorsport discipline.
Engineered for toyota aw11 case.
⸻
Application
• Motorsport discipline: Rally, Hillclimb, Circuit, Autocross, Rallycross
• Vehicle type: Toyota
• Engine compatibility: 4A-GE 1.6 DOHC
• Drive type: RWD
⸻
Key Features
• dog engagement system
• Maximum torque capacity:300Nm

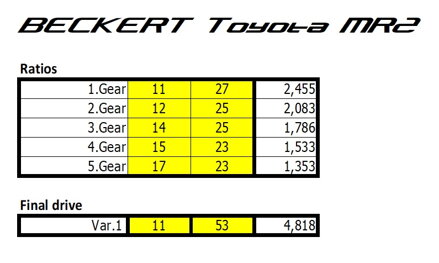

• Gear ratios: SEE PHOTOS
• Lightweight design 12kg
• Optimized for performance and durability
• No modifications of original housing
⸻
Technical Specifications
• Gearbox type: aw11 manual
• Number of gears: 5+R
• Shifting mechanism: H-pattern (mechanical)
• Gear material: Steel
• Housing material: Original
• Lubrication system: Oil
• Cooling option: No
• Final drive ratio: SEE PHOTOS
• Compatible with differentials: Original, Aftermarket LSD based on copy of original
⸻
Dimensions & Weight of package
• Length: 49 mm
• Width: 30 mm
• Height: 20 mm
• Weight: 14 kg
⸻
Included in Price
• Gearbox assembly: NO
• Gear lever / shift mechanism: NO
• Original gearbox: NO
• User manual: YES
• Reinforced forks: YES 2x
⸻
Optional Accessories
• Differential options: No
• Paddle shift system: No
• Oil cooler kit: No
⸻
Advantages
• Designed and manufactured by Beckert Technology
• Proven in many motorsport events
• High reliability under hardest conditions
⸻
Installation Notes
• Installation requires Original gearbox, welding of forks
• Recommended oil type: Motul 75-w140
• Service interval: 1500km
⸻
Ordering Information
• Product code: TMR2
• Availability: Ask
• Lead time: Ask (standart up to 7weeks)
• Customization options: No
⸻
Contact
For pricing, customization, or technical support, please contact one of our dealers listed on our webpage or ask us directly with button "SEND INQUIRY"
