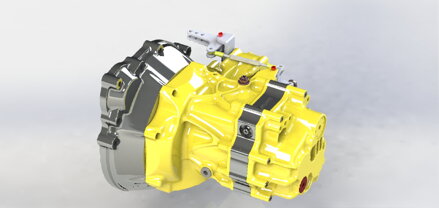

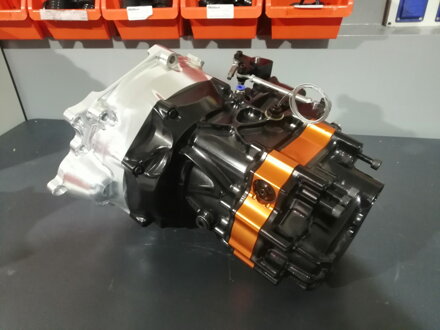

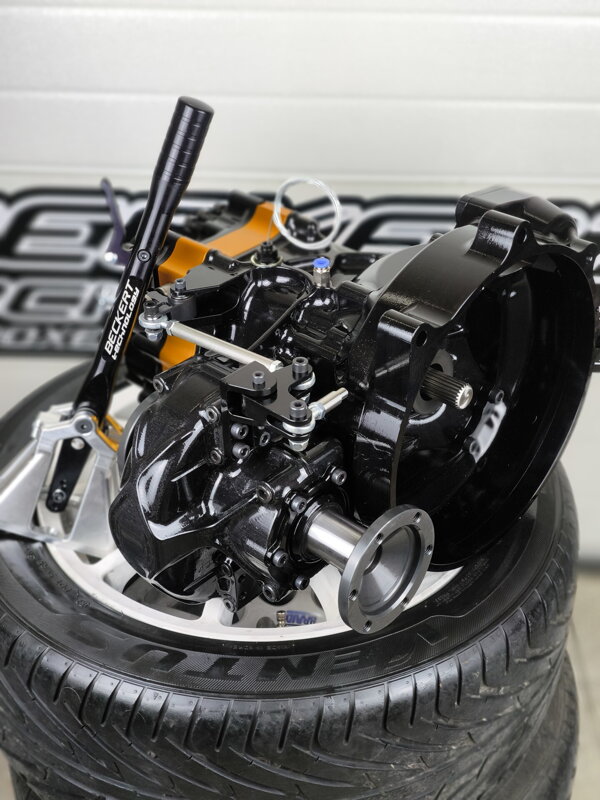

PRODUCT NAME – EVO1 6-speed sequential
Short Description
High-performance sequential gearbox designed for all motorsport discipline.
Case made from aircraft high performance billet alluminium blocks.
⸻
Application
• Motorsport discipline: Rally, Hillclimb, Circuit, Autocross, Rallycross
• Vehicle type: ANY (from the list below)
• Engine compatibility: ANY (from the list below)
• Drive type: 2wd Transverse
⸻
Key Features
• Sequential shift, dog system
• Maximum torque capacity: 480nm (450nm turbo)
• Gear ratios: SEE PHOTOS
• Lightweight design 46kg
• Optimized for performance and durability
• 1 year warranty for broke the shafts or the teeth from the purchase of the gearbox!
⸻
Technical Specifications
• Gearbox type: EVO1 Beckert
• Number of gears: 6+R
• Shifting mechanism: Sequential
• Gear material: Steel
• Housing material: Billet aluminium
• Lubrication system: Oil
• Cooling option: Possible to add cooling for oil
• Final drive ratio: SEE PHOTOS
• Strong ouput flanges D100/D108mm ( lobro type )
• O-ring sealing between all housing parts
• Wide range of ratios available
• Wide range of final drives available
• Ramp (62° or 40°) and plate LSD unit Preload 55-90nm

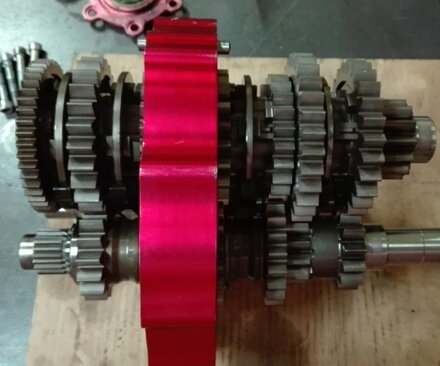

• Straight cut gears
• Specific input shaft 1inch x23 thees
⸻
Dimensions & Weight of package ( shipping )
• Length: 60 mm
• Width: 52 mm
• Height: 50 mm
• Weight: 56 kg
⸻
Included in Price
• Gearbox assembly: YES
• Gear lever / shift mechanism: NO
• Gearbox holders: YES
• User manual: YES
• Differential: YES
• Clutch bearing: YES
⸻
Optional Accessories ( accesories to buy )
• Gear shifter Beckert
• Paddle shift system ( buy at MME motorsport )
• Gear display+wiring Beckert
• Gear position sensor Beckert
• Bellhousing Beckert ( any type of engine, listed below )
• CV joint lobro type D100 / D108
• Driveshafts (ask for more details)
⸻
Advantages
• Designed and manufactured by Beckert Technology
• Proven in many motorsport events with hundreds of titles won worldwide
• High reliability under hardest conditions in motorsport
• Fast service support
⸻
Installation Notes
• Installation requires neccesary accesories for a specific vehicle and engine type, holders needs to be installed on chassi
• Top gearbox mount and anti-torque engine mount is required
• Recommended oil type: Motul sae 75-w140
• Service control: 1year
• Oil change: 300km
⸻
Ordering Information
• Product code: EVO1-
• Availability: Ask
• Lead time: Ask (standart up to 5weeks)
• Customization options: No
Bellhousings:
Alfa-Romeo 156 GTA
Citroen/Peugeot 1,6 TU
Citroen/Peugeot 2,0 XU10
Citroen/Peugeot 2,0 EW10
Fiat Punto 1,2 16v
Fiat X1/9
Fiat chroma / Lancia delta integrale
Ford Escort 1,6 Turbo Mk4(BC)
Ford Escort 2,0 RS2000 (MTX75)
Ford Focus RS (MTX75)
Ford Fiesta 1,6 16v
Ford Fiesta ST180 / ST200 (custom flywheel and 7,25 clutch)
Ford Fiesta ST150 (IB5)
Ford Kuga Tdci (swap KIT 4wd to 380Nm)
Honda Civic 2,0 TypeR EP3/FN2 (K20, K24)
Honda Civic 1,6 Vtec (B16)
Honda Civic 1,6 Vtec (D16)
Honda Prelude 2,2 Vtec (H22)
Hyundai i30 N 2,0TGDi
Hyundai Coupe 2,0 16v (G4GF)
Kia ProCeed GT 1,6TGdi
Lada Samara 1,6
Lada Kalina
Mazda 323 1,8 16v
Mazda MX6
Mitsubishi Colt 1,6 16v (CJ4A gen.V)
Nissan Sunny 2,0 Gti
Opel Astra/Kadett GSI 2,0 16v
Renault Clio 1,6 16v
Renault Clio sport Ph1,2 2,0 16v (F7R, F4R)
Renault Clio 3 sport 2,0 16v (F4A)
Renault Megane 2 RS 2,0T (custom flywheel+starter)
Rover PG1
Suzuki SC100
Suzuki Swift 1,6 16v
Škoda Fabia 1,6 16v RX/AX (alu 1,4 16v)
Škoda Octavia 2,0 16v/20v (ABF)
Toyota Celica 1,8 16v
Toyota Celica 2,0 16v
VW Polo/ Golf 1,6 16v RX/AX (alu 1,4 16v)
VW 2,0 16v/20v (ABF)
Honda CIVIC eg6 (K20 swap)
Honda Civic TypeR Fn2
Service video manual
https://www.youtube.com/playlist?list=PLspc_X7Fb0yBN3KYopKDsDZT6qdwlSMX0
Contact
For pricing, customization, or technical support, please contact one of our dealers listed on our webpage or ask us directly with button “SEND INQUIRY”
