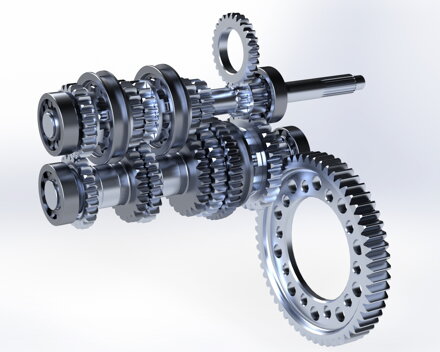

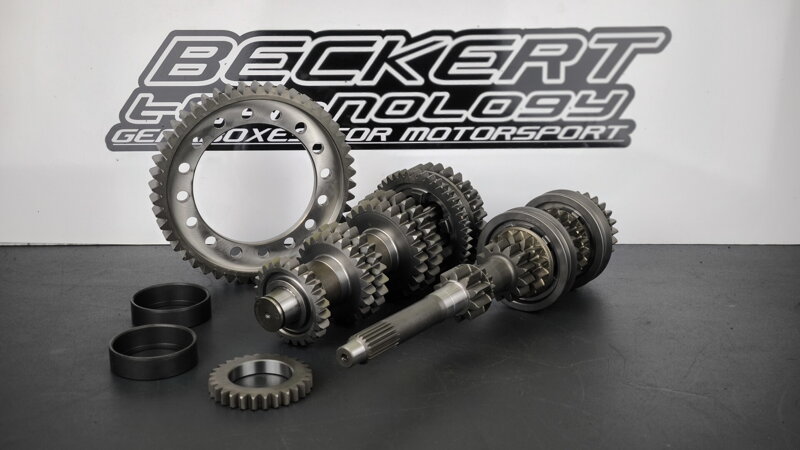

PRODUCT NAME – Clio3 TL4 Dogbox kit Beckert
Short Description
High-performance dogbox type gearbox designed for all motorsport discipline.
Engineered for TL4 renault gearbox.
⸻
Application
• Motorsport discipline: Rally, Hillclimb, Circuit, Autocross, Rallycross
• Vehicle type: Renault
• Engine compatibility: 2.0 Renault
• Drive type: FWD
⸻
Key Features
• Dog engagement system
• Maximum torque capacity:280Nm
• Gear ratios: Written down bellow
• Lightweight design 12 kg
• Optimized for performance and durability
• Needed modifications for housing.
⸻
Technical Specifications
• Gearbox type: TL4
• Number of gears: 6+R
• Shifting mechanism: H-pattern (mechanical)
• Gear material: Steel
• Housing material: Original
• Lubrication system: Oil
• Cooling option: No
• Final drive ratio: Written down bellow
• Compatible with differentials: Original, Beckert LSD, Aftermarket LSD based on copy of original
⸻
Dimensions & Weight of package
• Length: 49 mm
• Width: 30 mm
• Height: 20 mm
• Weight (without oil): 12kg
⸻
Included in Price
• Gearbox assembly: NO
• Gear lever / shift mechanism: NO
• Original gearbox: NO
• User manual: YES
⸻
Optional Accessories
• Differential options: TL4 LSD Beckert
• Paddle shift system: No
• Oil cooler kit: No
⸻
Advantages
• Designed and manufactured by Beckert Technology
• Proven in many motorsport events
• High reliability under hardest conditions
⸻
Installation Notes
• Installation requires Original gearbox
• Recommended oil type: Motul 75-w140
• Service interval: 1500km
⸻
Ordering Information
• Product code: Cli 3
• Availability: Ask
• Lead time: Ask (standart up to 4weeks)
• Customization options: No
⸻
Contact
For pricing, customization, or technical support, please contact one of our dealers listed on our webpage or ask us directly with button "SEND INQUIRY"
Ratios Final drive
1. 2,900 Var.1 3,19
2. 2,077 Var.2 3,80
3. 1,667 Var.3 4,31
4. 1,412 Var.4 5,00
5. 1,211 / 1,158
6. 1,043 / 1,000
