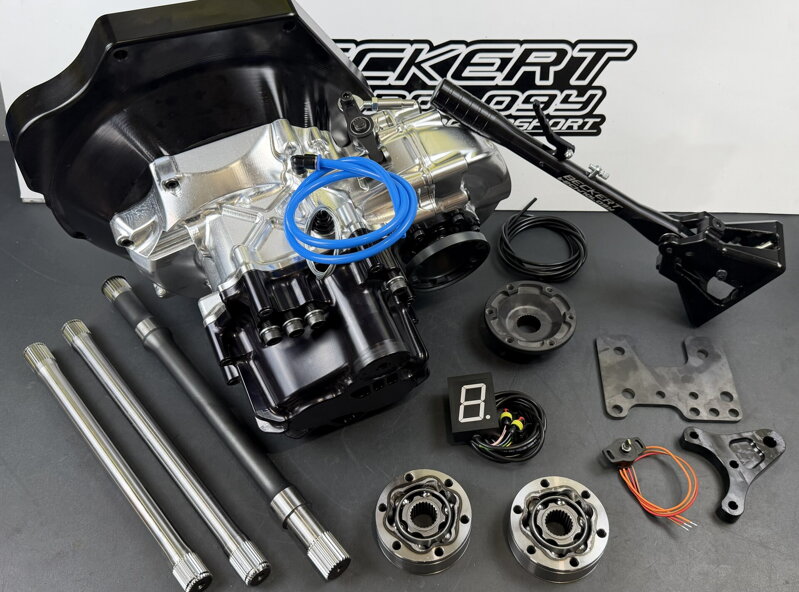

K20 SSG-260 5-speed sequential FWD Beckert

PRODUCT NAME – SSG-260 5-speed sequential FWD

Short Description

High-performance sequential gearbox designed for all motorsport discipline.

Case made from aircraft high performance billet alluminium blocks.

⸻

Application

• Motorsport discipline: Rally, Hillclimb, Circuit, Autocross, Rallycross

• Vehicle type: Honda Civic EP3, Honda Civic EP3 FN2, Honda civic Typer, K20 / K24 Swap eg6 ek4

• Engine compatibility: K20, K24

• Drive type: 2wd Transverse

⸻

Key Features

• Sequential shift, dog system

• Maximum torque capacity: 340nm (320nm turbo)

• Gear ratios: SEE PHOTOS

• Lightweight design 34kg

• Optimized for performance and durability

• 1 year warranty for broke the shafts or the teeth from the purchase of the gearbox!

⸻

Technical Specifications

• Gearbox type: SSG-260 Beckert

• Number of gears: 5+R

• Shifting mechanism: Sequential

• Gear material: Steel

• Housing material: Billet aluminium

• Lubrication system: Oil

• Cooling option: Possible to add cooling for oil

• Final drive ratio: SEE PHOTOS

• Strong ouput flanges D100/D108mm ( lobro type )

• O-ring sealing between all housing parts

• Wide range of ratios available

• Wide range of final drives available

• Ramp (62° or 40°) and plate LSD unit Preload 55-90nm

• Straight cut gears

• Specific input shaft 1inch x23 thees

⸻

Dimensions & Weight of package ( shipping )

• Length: 60 mm

• Width: 52 mm

• Height: 50 mm

• Weight: 49 kg

⸻

Included in Price

• Gearbox assembly: YES

• Gear lever / shift mechanism: NO

• Gearbox holders: YES

• Differential: YES

• Clutch bearing: YES

⸻

Optional Accessories ( accesories to buy )

• Gear shifter Beckert

• Paddle shift system ( buy at MME motorsport )

• Gear display+wiring Beckert

• Gear position sensor Beckert

• Bellhousing Beckert ( any type of engine, listed below )

• CV joint lobro type D100 / D108

• Driveshafts (ask for more details)

⸻

Advantages

• Designed and manufactured by Beckert Technology

• Proven in many motorsport events with hundreds of titles won worldwide

• High reliability under hardest conditions in motorsport

⸻

Installation Notes

• Installation requires neccesary accesories for a specific vehicle and engine type, holders needs to be installed on chassi

• Top gearbox mount and anti-torque engine mount is required

• Recommended oil type: Motul sae 75-w140

• Service control: 1year

• Oil change: 300km

⸻

Ordering Information

• Product code: SSG260-

• Availability: Ask

• Lead time: Ask (standart up to 5weeks)

• Customization options: No
