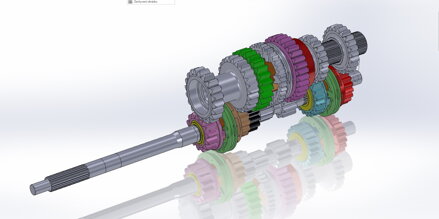

PRODUCT NAME – Audi 01e Dogbox kit
Short Description
High-performance dogbox kit designed for all motorsport discipline.
⸻
Application
• Motorsport discipline: Rally, Hillclimb, Circuit, Autocross, Rallycross, Drag racing
• Vehicle type: Audi
• Engine compatibility: Audi
• Drive type: AWD
⸻
Key Features
• Sequential shift, dog system
• Maximum torque capacity: 1000nm
• Gear ratios: SEE PHOTOS
• Optimized for performance and durability
⸻
Technical Specifications
• Gearbox type: Audi 01e
• Number of gears: 6+R
• Shifting mechanism: Dogbox H-pattern
• Gear material: Steel
• Lubrication system: Oil
• Ramp (62° or 40°) and plate LSD unit Preload 55-90nm
• Straight cut gears
• Specific input shaft 1inch x23 thees
⸻
Included in Price
• Gearbox assembly: NO
⸻
Optional Accessories ( accesories to buy )
• Audi 01e Front differential Beckert
• Audi 01e middle differential Beckert
• Audi 01e rear differential Beckert
• Assembly ( with customer full OEM gearbox )
⸻
Advantages
• Designed and manufactured by Beckert Technology
• Proven in many motorsport events with hundreds of titles won worldwide
• High reliability under hardest conditions in motorsport
⸻
Installation Notes
• Recommended oil type: Motul sae 75-w140
• Service control: 1year
• Oil change: 300km
⸻
Ordering Information
• Product code: AUDI-
• Availability: Ask
• Lead time: Ask (standart up to 9weeks)
• Customization options: No
Contact:
For pricing, customization, or technical support, please contact one of our dealers listed on our webpage or ask us directly with button “SEND INQUIRY”
